发表于 2011-10-19 11:15:50 | 显示全部楼层 |阅读模式

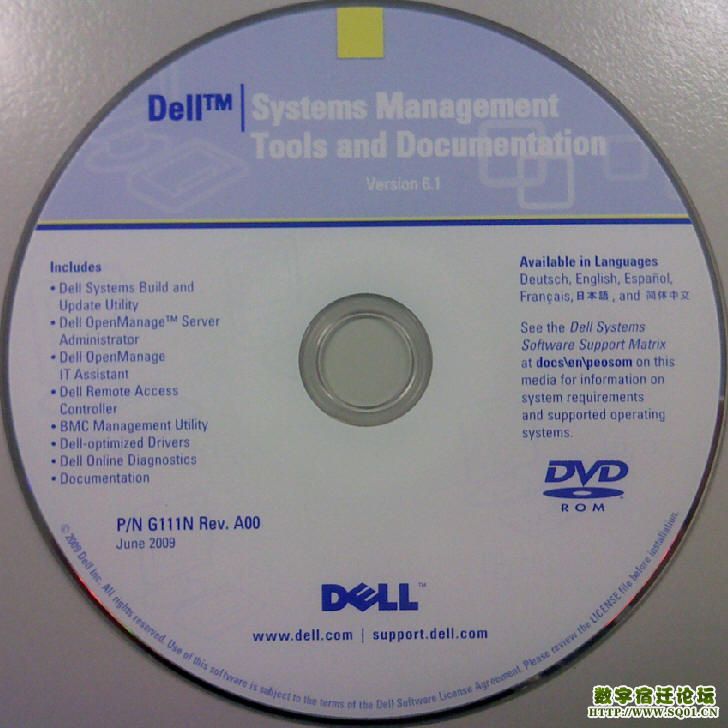

6.1下载链接:
part1:ftp://ftp.dell.com/secure/sysman/OM_6.1.0_SMTD_A00_iso.001
part2:ftp://ftp.dell.com/secure/sysman/OM_6.1.0_SMTD_A00_iso.002
DOS 窗口运行下面命令合成001与002:copy /b OM_6.1.0_SMTD_A00.iso.001+OM_6.1.0_SMTD_A00.iso.002 OM_610_SMTD_A00.iso [Windows] 适用机型:
PowerEdge 1800
PowerEdge 1850
PowerEdge 1855
PowerEdge 1950
PowerEdge 1955
PowerEdge 2900
PowerEdge 2950
PowerEdge 2970
PowerEdge 6800
PowerEdge 6850
PowerEdge 6950
PowerEdge 800
PowerEdge 700
PowerEdge 750
PowerEdge M600
PowerEdge M605
PowerEdge M610
PowerEdge M710
PowerEdge M805
PowerEdge M905
PowerEdge 1900
PowerEdge 830
PowerEdge 840
PowerEdge 850
PowerEdge 860
PowerEdge SC440
PowerEdge 2800
PowerEdge 2850
PowerEdge R200
PowerEdge R300
PowerEdge R410
PowerEdge R610
PowerEdge R710
PowerEdge R805
PowerEdge R900
PowerEdge R905
PowerEdge T100
PowerEdge T105
PowerEdge T300
PowerEdge T410
PowerEdge T605
PowerEdge T610
PowerEdge T710
PowerEdge SC1425
PowerVault DL2000
PowerVault DP100/NF100
PowerVault DP500/NF500
PowerVault MD1000
PowerVault MD1120
PowerVault MD3000
PowerVault MD3000i
PowerVault NX1950
PowerVault NX3000

适用操作系统:
Novell SuSE Linux ES 11
VMWare ESX
Microsoft Windows Server 2008 x64
Red Hat Red Hat Enterprise Linux 4
Novell SuSE Linux ES 10
Red Hat Red Hat Enterprise Linux 4.7
Red Hat Red Hat Enterprise Linux 5.2
Red Hat Red Hat Enterprise Linux 5
Novell SuSE Linux ES 10 SP2 x86_64
Microsoft Windows Server 2008 x86
Microsoft Windows Server 2003
Microsoft Windows Server 2003 x64


制作U盘驱动方法:(注意 下载的工具和解压缩都是在本地硬盘就好,不要放到U盘上运行)(如果提示失败,直接点prepare按钮重试两次,一般都可以成功)
从下面链接下载对应阵列卡的工具.直接运行.
PERC4e_2k3
attachment.gif 点此下载附件
PERC4e_2k3(64bit)
点此下载附件
sas5i/sas5e/sas5ir/sas6ir_2k3
点此下载附件
sas5i/sas5e/sas5ir/sas6ir_2k3(64bit)
点此下载附件
sas5i/sas5e/sas5ir/sas6ir_XP
点此下载附件
sas5i/sas5e/sas5ir/sas6ir_XP(64bit
点此下载附件
perc5i/perc5e/perc6i/perc6e_2k3
点此下载附件
perc5i/perc5e/perc6i/perc6e_2k3(64bit)
点此下载附件
Adaptec39320_2k3_XP_2k3(64bit)
点此下载附件
Adaptec39320(EMU)_2k3_2k3(64bit)
点此下载附件
SATA 1.5-6ch_2k3
点此下载附件
SATA 1.5-6ch_2k3(64bit)
点此下载附件
PERC 320DC_wk3
点此下载附件
cerc 2s_2k3
点此下载附件
cerc 2s_2k3(x64)
点此下载附件
PERC-S100_S300_2k3
点此下载附件
PERC-S100_S300_2k3(X64)
点此下载附件

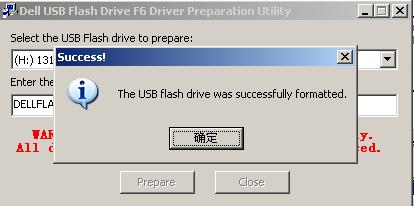

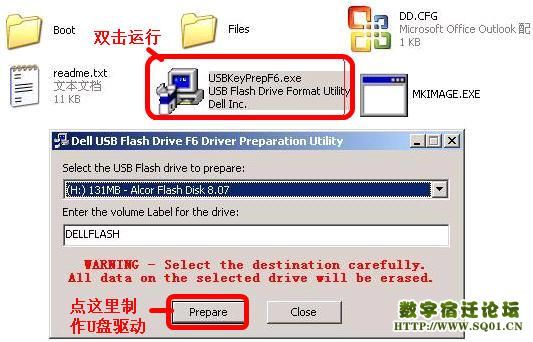

下载解压缩到希望的临时目录,然后进入解压缩的目录,运行USBKeyPrepF6.exe。
vista系统中使用工具软件,需要右键点击USBKeyPrepF6.exe,选择以管理员身份运行.

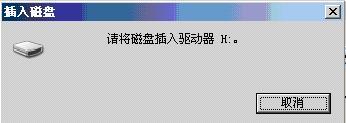

此时您重插U盘再双击U盘,会提示请插入磁盘驱动器,表示U盘驱动做好。
如果仍然可以打开您的U盘看到里面的文件,说明没有做好。

开始安装服务器:

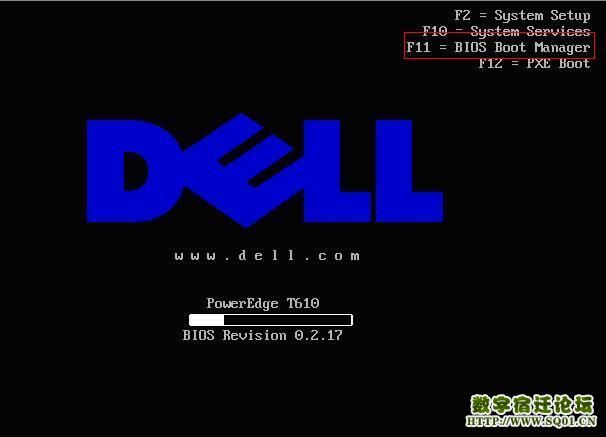

1,将U盘插在要安装的服务器后置(推荐)USB端口,重启服务器,将系统光盘放在光驱内,按F11=Boot Menu,进入启动菜单后,确认U盘有被识别到。正常从光盘开始安装。

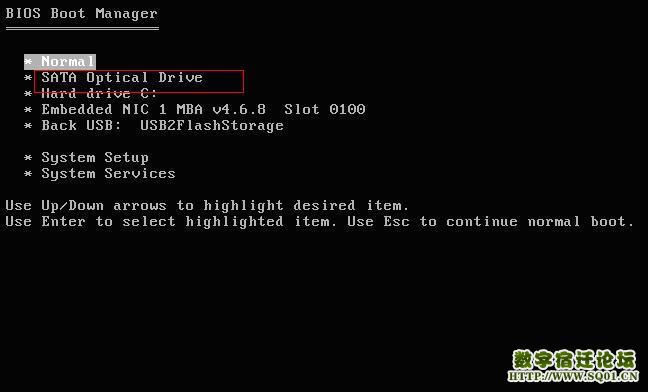

选择从光驱引导:

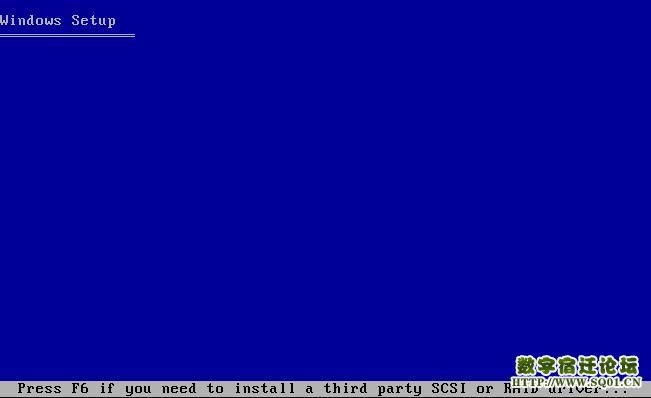

2,在屏幕的底部出现信息:Press F6 if you need to install a third party SCSI or RAID driver 时,及时按下“F6”键。

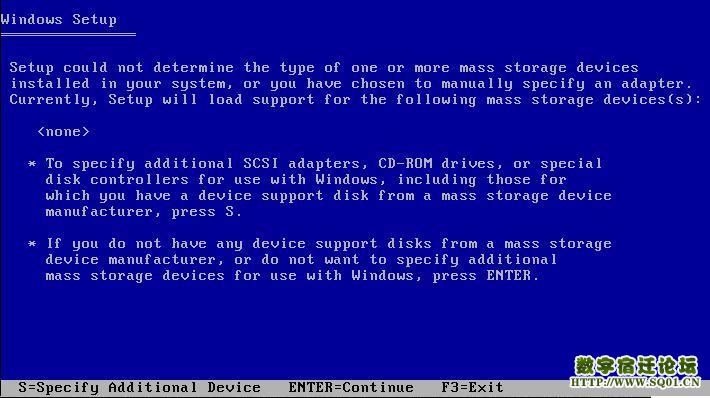

3,按完"F6",后,安装程序会继续加载模块。这是正常的。过一会儿后,您将会看到以下信息:Setup could not determine the type of one or more mass storage devices installed in your system, or you have chosen to manually specify an adaptor.

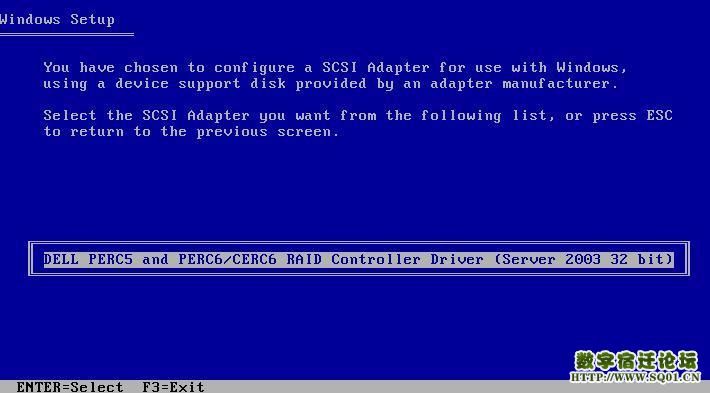

4,单击“S”,出现U盘中的驱动程序名称

5,敲回车确认,红框中的信息表示驱动被加载。回车继续安装。
